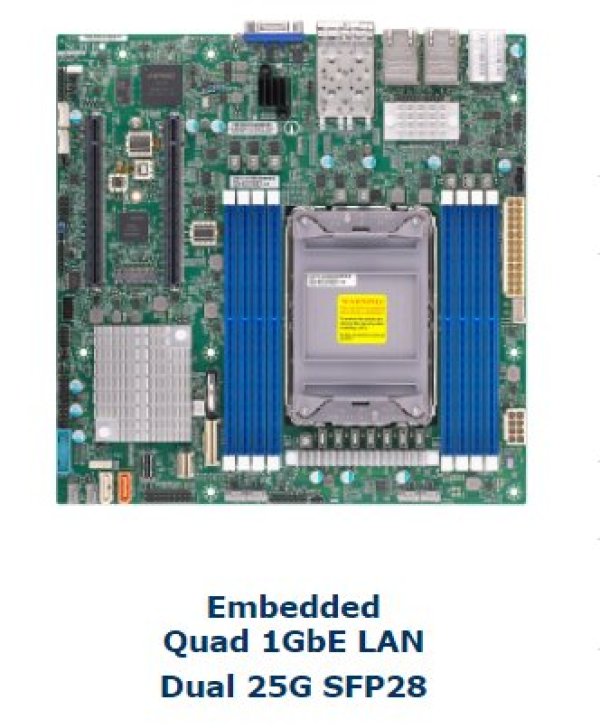

SUPERMICRO MB 1xLGA4189, iC621A, 8x DDR4 ECC, 3xNVMe, 1xNVMe/4xSATA3, M.2, 2x PCIe4.0 x16, 2x 25Gb + 4x 1Gb LAN,IPMI?v=1761950406

Key Features

3rd Gen Intel® Xeon® Scalable Processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel® C621A
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane? Persistent Memory 200 Series, in 8 DIMM slots
2 PCI-E 4.0 x16
1 PCI-E 4.0 NVMe x8 SlimSAS Internal Port
1 PCI-E 4.0 NVMe x4 SlimSAS Internal Port
1 OCuLink Connector (4 SATA/PCI-E 3.0 x4)
1 M.2 M-Key 2242/2280 (SATA/PCI-E 3.0 x4)
Quad 1G RJ45 with Intel® I350-AM4
Dual 25G SFP28 with Broadcom BCM57414
4 USB 3.2 Gen 1 (2 Rear, 2 via Header),
4 USB 2.0 (Headers)
Supports 12V DC power input

Specifications


Product SKUs

MBD-X12SPZ-SPLN6F	X12SPZ-SPLN6F


Physical Stats

Form Factor	Micro-ATX
Dimensions	9.6" x 9.6" (24.38cm x 24.38cm)


Processor/Cache

CPU	3rd Gen Intel® Xeon® Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Cores / Cache	Up to 40 cores


System Memory

Memory Capacity	Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
Memory Type	3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C621A
SATA	Intel® C621A controller for 6 SATA3 (6 Gbps) ports; 4 SATA ports via OCuLink; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Network Controllers	Quad LAN with 1GbE with Intel® I350-AM4 Dual LAN with Broadcom BCM57414 25G SFP28


Input / Output

LAN	4 RJ45 Gigabit Ethernet LAN ports 2 SFP28 25 Gigabit Ethernet LAN ports
USB	4 USB 2.0 ports (4 via headers) 4 USB 3.2 Gen1 ports (2 rear + 2 via headers)
Video Output	1 VGA port
Serial Port / Header	1 COM Port (1 header)
TPM	TPM Header & Chip both

Expansion Slots

PCI-E	2 PCI-E 4.0 x16
M.2	1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280


System BIOS

BIOS Type	256Mb SPI Flash with AMI BIOS
BIOS Features	ACPI 6.2 UEFI 2.8 SMBIOS 2.8 SMBIOS 3.3 or later Plug and Play (PnP) PCI FW 3.0


Management

Software	Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	+12V DC Power Input ACPI Power Management ATX Power connector M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL


PC Health Monitoring

Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT
Temperature	CPU thermal trip support
LED	Power LED, UID/Remote UID
Other Features	12V DC or ATX Power Source, ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, RoHS


Operating Environment

Operating Temperature Range	0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range	10% ~ 95% (non-condensing)

Parts List

Parts List (Bulk Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X12SPZ-SPLN6F	1	X12SPZ-SPLN6F Motherboard
SATA Cables	CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00154-0N	1	Standard I/O Shield for X12SPZ
CPU Retention Module	SKT-1205L-P4IC-FXC	1	Socket P4 LGA4189 Carrier

Parts List (Retail Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X12SPZ-SPLN6F	1	X12SPZ-SPLN6F Motherboard
SATA Cables	CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00154-0N	1	Standard I/O Shield for X12SPZ
QRG	MNL-2291-QRG	1	Motherboard Quick Reference Guide
CPU Retention Module	SKT-1205L-P4IC-FXC	1	Socket P4 LGA4189 Carrier

Optional Parts List
Name	Part Number	Qty	Description
1U I/O Shield	MCP-260-00155-0N	--	Standard 1U I/O Shield with EMI Gasket
TPM security module	AOM-TPM-9670V	--	SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module	AOM-TPM-9671V	--	SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
x8 SlimSAS to 2x U.2 Cable	CBL-SAST-0953-1	--	55CM Slimline x8 to PCIe 2x SFF-8639
x4 SlimSAS to U.2 Cable	CBL-SAST-1240A-85	--	40CM Slimline x4 to PCIe SFF-8639
OCuLink to U.2 Cable	CBL-SAST-0956	--	55CM OCuLink to U.2 Cable with Molex Power Header
OCuLink to 4x SATA Cable	CBL-SAST-0933	--	50CM OCuLink to 4x SATA Cable

Chassis (Optimized for

X12SPZ-SPLN6F

Embedded Compact	1U	2U	3U	Mid/Mini-Tower	4U/Tower
	SC515M-R804 SC113MFAC2-605CB

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU

Technické parametry

SUPERMICRO MB 1xLGA4189, iC621A, 8x DDR4 ECC, 3xNVMe, 1xNVMe/4xSATA3, M.2, 2x PCIe4.0 x16, 2x 25Gb + 4x 1Gb LAN,IPMI

Výrobce Supermicro

20 221 Kč 16 711 Kč bez DPH

Skladem
