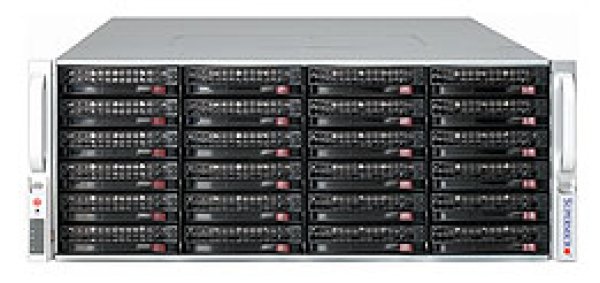

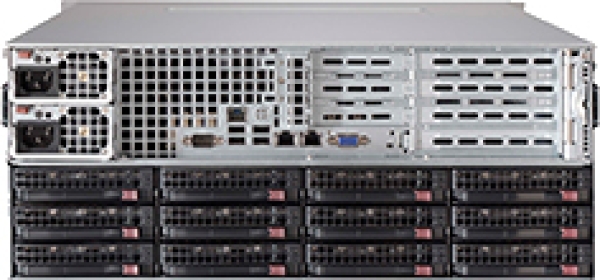

SUPERMICRO 4U chassis 36x 3,5" HS SAS/SATA (24x Front + 12x Rear/4xNVMe opt) +2x 2.5"opt., 2x1200W (80PLUS Titanium)?v=1783374006

SUPERMICRO 4U chassis 36x 3,5" HS SAS/SATA (24x Front + 12x Rear/4xNVMe opt) +2x 2.5"opt., 2x1200W (80PLUS Titanium)

Product SKUs

SuperChassis 847BE1C4-R1K23LPB

Form Factor

4U chassis support for motherboard size 12" x 10", 13.68" x 13", 9.6" x 9.6"

Processor Support

Dual and Single Intel® and AMD processors

Dimensions
Height	7" (178 mm)
Width	17.2" (437 mm)
Depth	27.5" (699 mm)
Gross Weight	118 lbs (53.52 kg)
Net Weight	86 lbs (39 kg)
Packaging (W x H x L)	27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
Available Color	Black

Expansion Slots

7x Low-profile expansion slot(s)

Drive Bays

Optional 2x 2.5" hot-swap drive bay
36x 3.5" hot-swap SAS/SATA drive bay with SES3

Backplane

12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
24-Port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD

Peripheral Drives

Optional 4x 2.5" internal fixed drive bay
Optional 2x 3.5" internal fixed drive bay

Front Panel
Button	Power On/Off button System Reset button
LED	Power status LED HDD activity LED 2 Network Activity LEDs Unit Identification (UID) LED Fan Fail/System Over Heat LED

Systems Cooling
Fans	7x 80mm high-performance fan(s)

System Monitoring

Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency	96%
Total Output Power and Input	1200W with Input 200 - 240Vac 1000W with Input 100 - 127Vac 1200W with Input 200 - 240Vdc
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	336 x 76 x 40 mm
Output Type	Backplanes (gold finger)
+12V	Max: 100A / Min: 0A (200Vdc - 240Vdc) Max: 100A / Min: 0A (200Vac - 240Vac) Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb	Max: 4A / Min: 0A
Power Distributor	PDB-PT847-8824 O/P: 12V/135 +5V Max: 100A +3.3V Max: 30A -12V Max: 0.6A
Certification	Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class A UL/CB UL/CUL

Technické parametry

SUPERMICRO 4U chassis 36x 3,5" HS SAS/SATA (24x Front + 12x Rear/4xNVMe opt) +2x 2.5"opt., 2x1200W (80PLUS Titanium)

Name: SUPERMICRO 4U chassis 36x 3,5" HS SAS/SATA (24x Front + 12x Rear/4xNVMe opt) +2x 2.5"opt., 2x1200W (80PLUS Titanium)
Brand: Supermicro
Price: 65094 CZK
Availability: OutOfStock

Výrobce Supermicro

65 094 Kč 53 796 Kč bez DPH

Není skladem

Parametry

Kód produktu

010SRCSE847BE1C4R1K23LPB

EAN

672042289912

Popis

Product SKUs

SuperChassis 847BE1C4-R1K23LPB

Form Factor

4U chassis support for motherboard size 12" x 10", 13.68" x 13", 9.6" x 9.6"

Processor Support

Dual and Single Intel® and AMD processors

Dimensions
Height	7" (178 mm)
Width	17.2" (437 mm)
Depth	27.5" (699 mm)
Gross Weight	118 lbs (53.52 kg)
Net Weight	86 lbs (39 kg)
Packaging (W x H x L)	27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
Available Color	Black

Expansion Slots

7x Low-profile expansion slot(s)

Drive Bays

Optional 2x 2.5" hot-swap drive bay
36x 3.5" hot-swap SAS/SATA drive bay with SES3

Backplane

12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
24-Port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD

Peripheral Drives

Optional 4x 2.5" internal fixed drive bay
Optional 2x 3.5" internal fixed drive bay

Front Panel
Button	Power On/Off button System Reset button
LED	Power status LED HDD activity LED 2 Network Activity LEDs Unit Identification (UID) LED Fan Fail/System Over Heat LED

Systems Cooling
Fans	7x 80mm high-performance fan(s)

System Monitoring

Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency	96%
Total Output Power and Input	1200W with Input 200 - 240Vac 1000W with Input 100 - 127Vac 1200W with Input 200 - 240Vdc
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	336 x 76 x 40 mm
Output Type	Backplanes (gold finger)
+12V	Max: 100A / Min: 0A (200Vdc - 240Vdc) Max: 100A / Min: 0A (200Vac - 240Vac) Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb	Max: 4A / Min: 0A
Power Distributor	PDB-PT847-8824 O/P: 12V/135 +5V Max: 100A +3.3V Max: 30A -12V Max: 0.6A
Certification	Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class A UL/CB UL/CUL

Parametry

Kód produktu

010SRCSE847BE1C4R1K23LPB

EAN

672042289912
