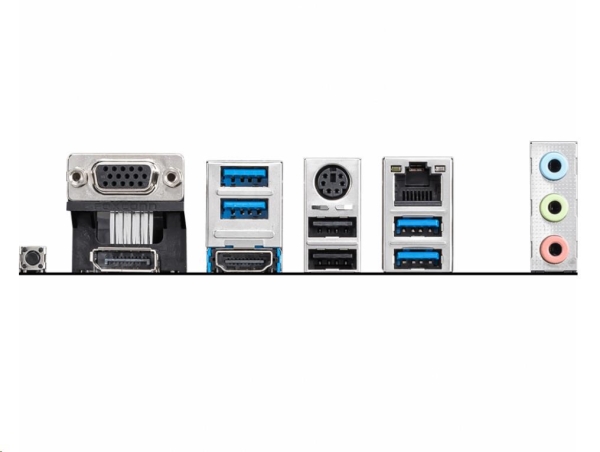

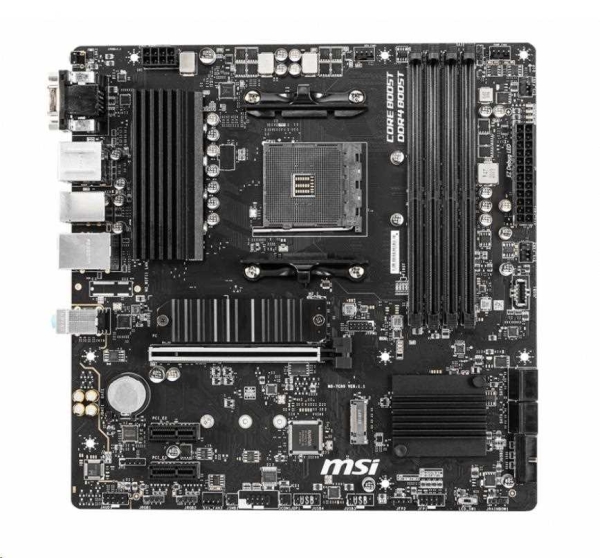

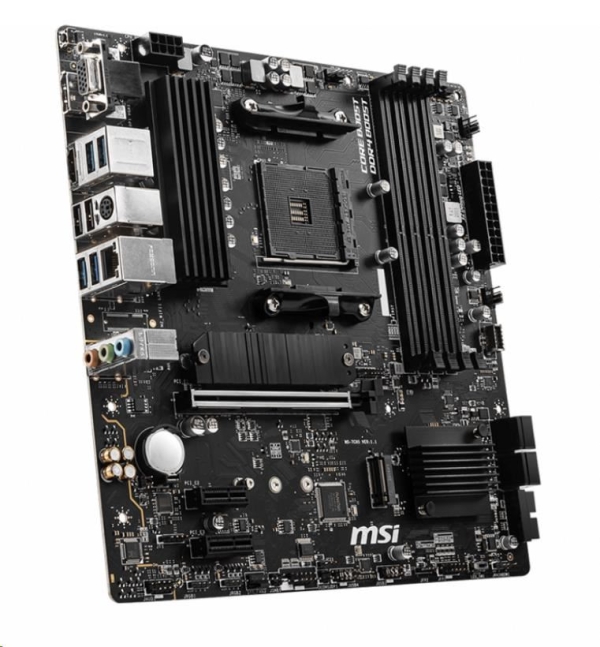

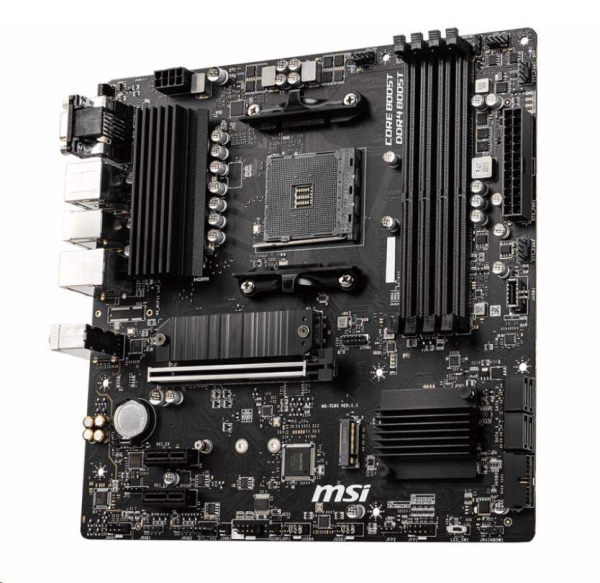

Chipset: AMD B550 Chipset Rozměrový formát: M-ATX Form Factor (244 mm x 244 mm) Podpora pro procesory: AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: *Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC *Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dual channel memory architecture *non-ECC UDIMM memory *ECC UDIMM memory *un-buffered memory Grafická karta: Integrated Graphics Processor (na základě procesoru) Zvuková karta: *Realtek® ALC892/ALC897 Codec Síťová karta: *1x Realtek® 8111HN Gigabit LAN controller Rozšiřující sloty: *1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) *2x PCIe 3.0 x1 slots RAID řadič: 0, 1, 10 SATA: *4x SATA 6Gb/s connectors M.2: *1x M2_1 slot PCIe 4.0/ 3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices *1x M2_2 slot PCIe 3.0 x4, Supports 2242/ 2260/ 2280 storage devices USB: *zadní USB porty ( celkem 6 ) *4x USB 3.2 Gen 1 5Gbps Type-A ports *2x USB 2.0 ports *přední USB porty ( celkem 7 ) *1x USB 3.2 Gen 1 5Gbps Type-C ports *2x USB 3.2 Gen 1 5Gbps ports *4x USB 2.0 ports Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *4x SATA 6Gb/s connectors *2x M.2 slots (M-Key) *1x USB 3.2 Gen 1 5Gbps Type-C port *1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) *1x 4-pin CPU fan connector *1x 4-pin water-pump fan connector *3x 4-pin system fan connectors *1x Front panel audio connector *2x System panel connectors *1x Serial port connector *1x Chassis Intrusion connector *2x 4-pin RGB LED connectors *2x 3-pin RAINBOW LED connectors *1x TPM module connector *1x Clear CMOS jumper Externí porty: *VGA *4x USB 3.2 Gen 1 5Gbps Type-A *Keyboard / Mouse *1x LAN *Flash BIOS button *DisplayPort *HDMI *2x USB 2.0 *3x HD Audio Connectors Stránka výrobce: https://www.msi.com/Motherboard/B550M-PRO-VDH
