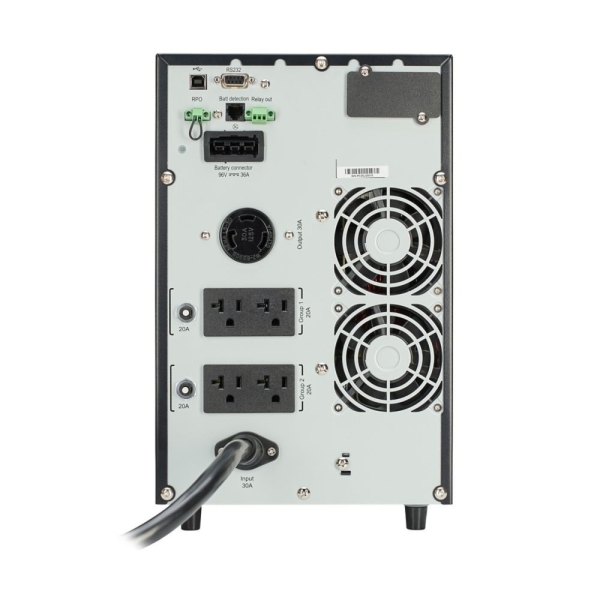

Eaton 9SX online, extended runtime UPS, 3000 VA, 2700 W, 120V, L5-30P input, Outputs: (4) 5-20R, (1) L5-30R, 13.6"Hx8.4"Wx16.2"D, 77.2 lb., network card optional General specifications Product Name Eaton 9SX UPS Catalog Number 9SX3000 UPC 743172091260 Product Length/Depth 16.2 in Product Height 13.6 in Product Width 8.4 in Product Weight 77.2 lb Compliances FCC Compliant CE Marked Certifications cULus Listed ICC-ES AC156 OSHPD Seismic certified Global Catalog 9SX3000 Product Type UPS Battery Battery management ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) Battery replacement Hot-swappable internal batteries and extended battery modules (EBMs) Extended battery capability Yes Electrical output Receptacle (4) 5-20R, (1) L5-30R Topology Online/Double-conversion Wattage 2700 W VA rating 3000 VA Output waveform True sine wave Voltage 120V Output power factor 0.9 Output nominal voltage 120V default (100/110/120/125V) Output frequency 50/60 Hz Feed type 1 Electrical input Input connection L5-30P Input cord length 8 ft Input nominal voltage 120 Default (100/110/120/125V) Input frequency range 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz Input power factor >.99 Communications Communication (1) MiniSlot (1) USB port (1) Serial RS-232 port (1) RPO/ROO/Signal input terminal (1) mini-terminal block for output relay Expansion slots (1) Mini-Slot (MS) expansion port. Optional connectivity cards may be ordered separately. - Gigabit Web/SNMP card part number: NETWORK-M3 - Modbus card part number: INDGW-M2 - Relay card part number: RELAY-MS User interface 5-button graphical user interface Potential free switch contact Yes Environmental Altitude 3000 m BTU Rating Online : 1020 BTU/hr, Battery : 1340 BTU/hr, High efficiency : 350 BTU/hr Noise level <53 dB at 1 meter Relative humidity 0-96% non-condensing Temperature range 0° to 40°C (32° to 104°F) Additional specifications Form factor Tower Construction type Free standing model Efficiency at max. load 90.9 Package contents 9SX 3000 VA UPS Quick start guide RS-232 serial cable USB cable Internal bypass Yes Warranty and support Standard factory warranty 3-YEAR FACTORY WARRANTY - 3 years - Parts, electronics and batteries coverage - Standard ground shipping - Technical support Extended service plans ADVANCED DEPOT EXCHANGE - 5-year depot repair: 9SW5Y-3000UC - Expedited parts coverage for 5 years - Parts, electronics and UPS batteries coverage - Next business day shipping - Technical support 5-YEAR ON-SITE PLAN: WFLN75XX-6009UC - On-site parts and labor coverage for years 5 - Parts, electronics and UPS batteries coverage - 24x7 on-site labor coverage, next-day response - Next-day shipping - Technical support
