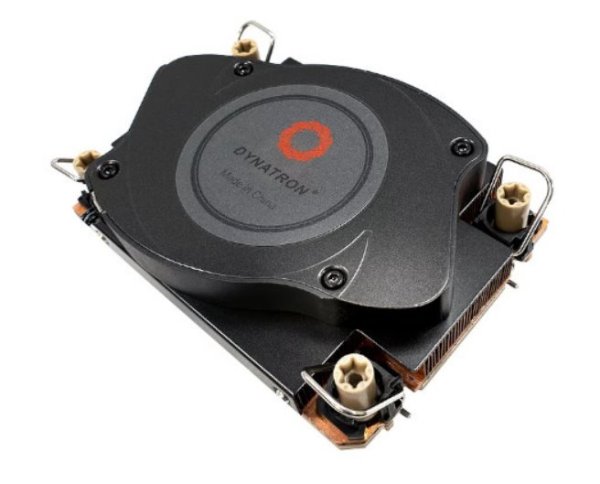

Dynatron N3 - 1U Actiive Cooler for Intel 4189, up to 205W?v=1761950406

N3

Recommend for Intel® Whitley Platform Cooper Lake and Ice Lake Processors, LGA 4189 sockets, Active Cooler for 1U Server, Copper Heatsink with Vapor Chamber Base, Steel PWM Blower, Support 205 Watts CPU Power Heat Dissipation.

Additional Information

CPU Support	Intel
CPU Socket	FCLGA 4189-4/5(Socket P4/P5 or P+)
Solution	1U Server and Up
Dimensions	113.0 x 80 x 27 mm
Weight	410 g
Material	Copper1100 Heatsink with Vapor Chamber Base
Fan Dimension	80 x 13 mm
Speed	At Duty Cycle 0~20%: 2000 ± 200 RPM At Duty Cycle 50%: 4900 ± 10% RPM At Duty Cycle 100%: 8600 ± 10% RPM
Rated Voltage	12V
Bearing	2 Ball Bearing
Power	At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 4.7 W At Duty Cycle 100%: 23.45 W
Air Flow	At Duty Cycle 20%: 5.59 CFM At Duty Cycle 50%: 14.76 CFM At Duty Cycle 100%: 26.25 CFM
Noise Level	At Duty Cycle 20%: 23.3 dBA At Duty Cycle 50%: 43.5 dBA At Duty Cycle 100%: 62.2 dBA
Air Pressure	At Duty Cycle 20%: 3.69 mm-H2O At Duty Cycle 50%: 25.28 mm-H2O At Duty Cycle 100%: 89.80 mm-H2O
Lead Wire Pin Out	Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM)
Thermal Grease	Shin-Etsu 7762 Pre-printed

*All product specifications and product images are subject to change without notice.

Technické parametry

Dynatron N3 - 1U Actiive Cooler for Intel 4189, up to 205W

Výrobce Supermicro

1 380 Kč 1 140 Kč bez DPH

Skladem

Parametry

Kód produktu

010JJN3

EAN

859300007536

Popis

N3

Recommend for Intel® Whitley Platform Cooper Lake and Ice Lake Processors, LGA 4189 sockets, Active Cooler for 1U Server, Copper Heatsink with Vapor Chamber Base, Steel PWM Blower, Support 205 Watts CPU Power Heat Dissipation.

Additional Information

CPU Support	Intel
CPU Socket	FCLGA 4189-4/5(Socket P4/P5 or P+)
Solution	1U Server and Up
Dimensions	113.0 x 80 x 27 mm
Weight	410 g
Material	Copper1100 Heatsink with Vapor Chamber Base
Fan Dimension	80 x 13 mm
Speed	At Duty Cycle 0~20%: 2000 ± 200 RPM At Duty Cycle 50%: 4900 ± 10% RPM At Duty Cycle 100%: 8600 ± 10% RPM
Rated Voltage	12V
Bearing	2 Ball Bearing
Power	At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 4.7 W At Duty Cycle 100%: 23.45 W
Air Flow	At Duty Cycle 20%: 5.59 CFM At Duty Cycle 50%: 14.76 CFM At Duty Cycle 100%: 26.25 CFM
Noise Level	At Duty Cycle 20%: 23.3 dBA At Duty Cycle 50%: 43.5 dBA At Duty Cycle 100%: 62.2 dBA
Air Pressure	At Duty Cycle 20%: 3.69 mm-H2O At Duty Cycle 50%: 25.28 mm-H2O At Duty Cycle 100%: 89.80 mm-H2O
Lead Wire Pin Out	Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM)
Thermal Grease	Shin-Etsu 7762 Pre-printed

*All product specifications and product images are subject to change without notice.
