Recommend for AMD® Ryzen Threadripper Processor, Socket sWRX8, sTRX4 , TR4, and AMD® Epyc Processor Socket SP3, Side-Blower 60x60x25mm PWM fan, Support CPU power up to 280 Watts heat dissipation.

Additional Information

CPU Support	AMD
CPU Socket	sWRX8/sTRX4/TR4/SP3
Solution	2U Server and Up
Dimensions	119.0 x 79.0 x 65.0 mm
Weight	450g
Material	Aluminum Heatsink with Heatpipe Embedded
Fan Dimension	60 x 60 x 25 mm
Speed	At Duty Cycle 20%: 1600 ± 200 RPM At Duty Cycle 50%: 4000 ± 10% RPM At Duty Cycle 100%: 8000 ± 10% RPM
Power	At Duty Cycle 20%: 1.2 W At Duty Cycle 50%: 2.28 W At Duty Cycle 100%: 7.2 W
Bearing	Ball Type, Double
Rated Voltage	12V
Air Flow	At Duty Cycle 20%: 8.85 CFM At Duty Cycle 50%: 21.88 CFM At Duty Cycle 100%: 43.75 CFM
Noise Level	At Duty Cycle 20%: 18 dBA At Duty Cycle 50%: 37.9 dBA At Duty Cycle 100%: 53 dBA
Air Pressure	At Duty Cycle 20%: 0.76 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 19.04 mm-H2O
Lead Wire Pin Out	Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM)

*All product specifications and product images are subject to change without notice.

Technické parametry

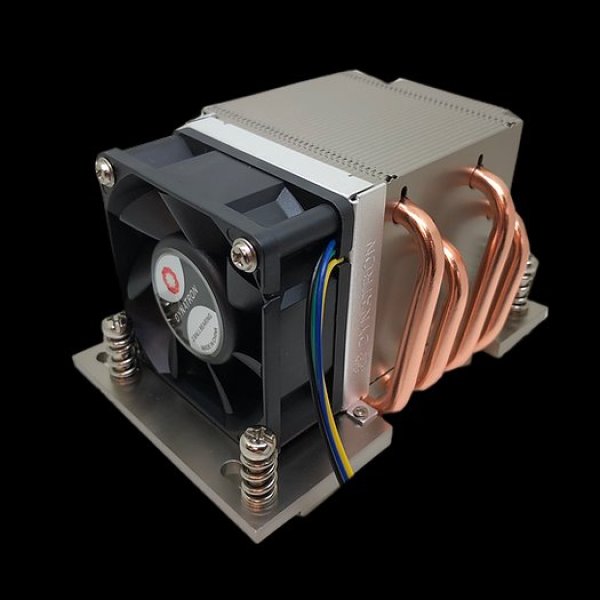

Name: Dynatron A26 - Active 2U Cooler for AMD® WRX8/SP3/TRX4/TR4, 280W
Brand: Supermicro
Price: 1241 CZK
Availability: InStock

Výrobce Supermicro

1 241 Kč 1 025 Kč bez DPH

Skladem

Kód produktu

010JJA26

EAN

855700001556

CPU Support	AMD
CPU Socket	sWRX8/sTRX4/TR4/SP3
Solution	2U Server and Up
Dimensions	119.0 x 79.0 x 65.0 mm
Weight	450g
Material	Aluminum Heatsink with Heatpipe Embedded
Fan Dimension	60 x 60 x 25 mm
Speed	At Duty Cycle 20%: 1600 ± 200 RPM At Duty Cycle 50%: 4000 ± 10% RPM At Duty Cycle 100%: 8000 ± 10% RPM
Power	At Duty Cycle 20%: 1.2 W At Duty Cycle 50%: 2.28 W At Duty Cycle 100%: 7.2 W
Bearing	Ball Type, Double
Rated Voltage	12V
Air Flow	At Duty Cycle 20%: 8.85 CFM At Duty Cycle 50%: 21.88 CFM At Duty Cycle 100%: 43.75 CFM
Noise Level	At Duty Cycle 20%: 18 dBA At Duty Cycle 50%: 37.9 dBA At Duty Cycle 100%: 53 dBA
Air Pressure	At Duty Cycle 20%: 0.76 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 19.04 mm-H2O
Lead Wire Pin Out	Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM)

*All product specifications and product images are subject to change without notice.
