Club3D hub MST (Multi Stream Transport) USB3.2 Gen2 Type-C(DP Alt-Mode) na DisplayPort + HDMI 4K60Hz (M/F)
Parametry
MST hub USB3.2 Gen2 Type-C(DP Alt-Mode) to DisplayPort + HDMI 4K60Hz M/F

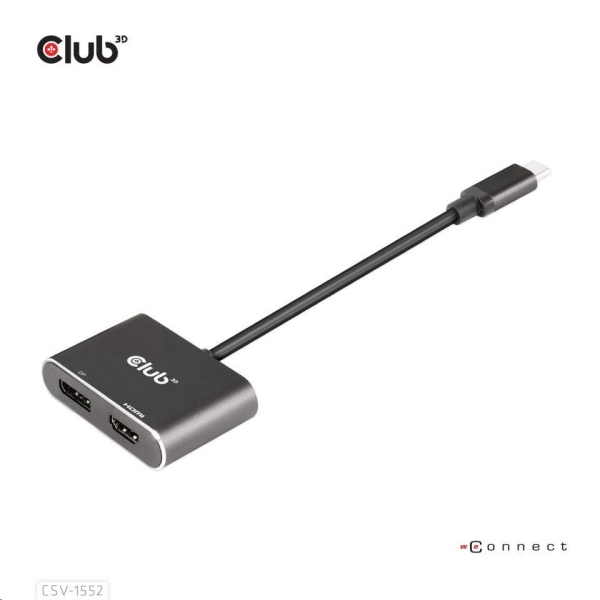

The CSV-1552 is a MST hub USB3.2 Gen2 Type-C(DP™1.4 Alt-Mode) to DisplayPort™ + HDMI™ 4K60Hz M/F . This USB-C MST hub is designed to cater for your most versatile connectivity demands, such as Mobile Phone, Tablet, laptop, etc. with a USB-C output which supports DP™ Alt-Mode.
Give your Phone, Ultrabook more displays. Phones, Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB3.2 Gen2 port available you can now drive one-Displayport™ screen simultaneously with a HDMI™2.0 screen at 4K60Hz or One DP™ display at 8K30Hz in MST mode(Windows). All it needs is a free USB3.2 Gen2 port with DP™ Alt-Mode on your Phone, Laptop or Ultrabook to connect to the MST hub and will provide you with unparalleled connection options for Dual 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.

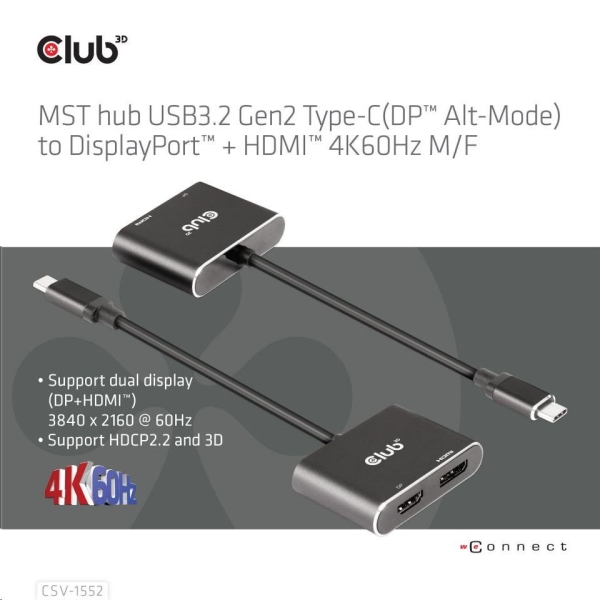

- Support dual display(DP+HDMI™) 3840 x 2160 @ 60Hz
- Support HDCP2.2 and 3D
- Support SST mode at MAC OS
- Support MST mode at Windows
TECHNICAL SPECIFICATIONS
| OS Support | Windows10, Mac OS |
| In the box | CSV-1552, MST hub USB3.2 Gen2 Type-C(DP Alt-Mode) to DisplayPort + HDMI 4K60Hz M/F |

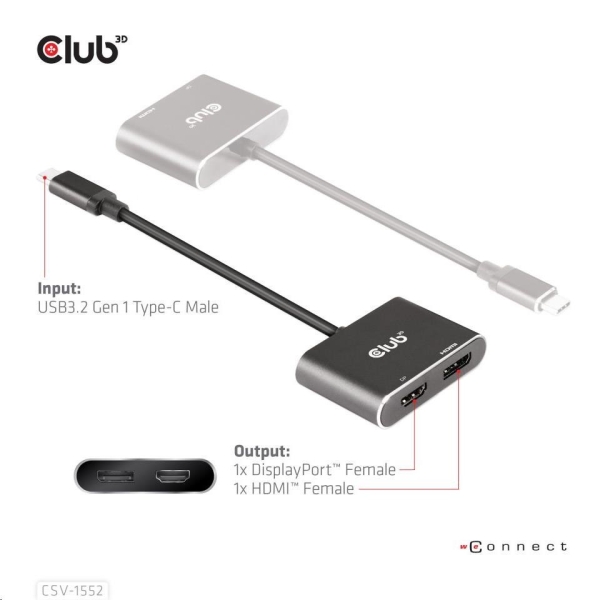

| Available Interfaces |
Input: Output: |
| Box size | 7.3 x 3.5 x 25cm / 2.87 x 1.38 x 9.84" |

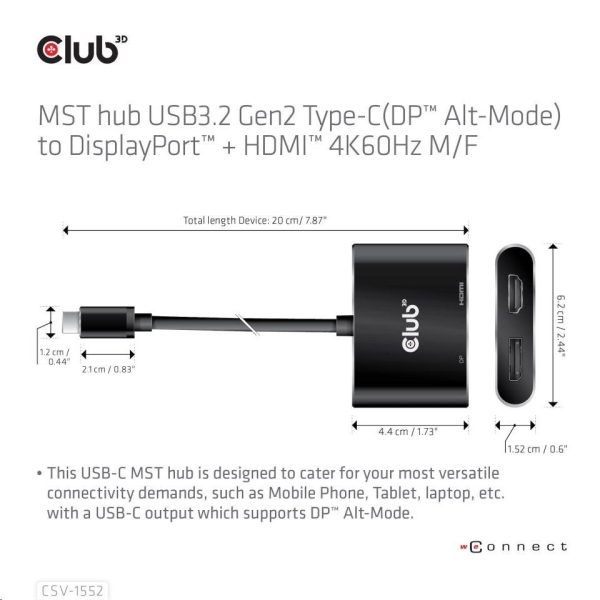

| Device size | 6.2 x 5.9 x 1.52 cm / 2.44 x 2.32 x 0.6" |
| Total length Device | 20 cm/ 7.87" |
| Box Weight | 34 gr / 1.2 oz |
| Device Weight | 48 gr / 1.69 oz |
| LDPE Bag Weight | 5 gr / 0.17 oz |
| Total Weight | 87 gr / 3.06 oz |
