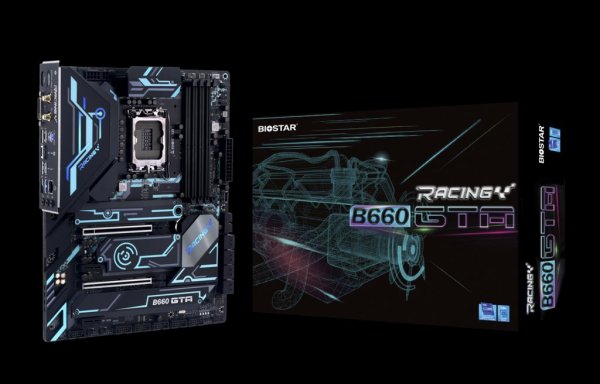

Biostar Intel B660, Socket LGA1700,ATX, DDR4, DP, HDMI, 2WiFi
Výrobce
Biostar
6 179 Kč
5 106 Kč bez DPH
Skladem
Parametry
Kód produktu
010ZSB660GTA
EAN
4712960685666
Popis
Recenze desky na ddworld.cz zde
| Main Board Desktop - Processor | |
| Chipset: | Intel B660 |
| Supports Central Processor Unit: | Intel 12th Gen Processors |
| CPU Socket Standard: | Socket 1700 |
| CPU Maximum Quantity Supports: | 1 |
| Main Board Desktop - Memory | |
| Memory Type: | DDR4 SDRAM |
| Memory Form Factor: | DIMM 288-pin |
| Memory Speed: | 1866MHz(PC4-14900) 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3200MHz(PC4-25600) |
| Maximum Installable System Memory Storage Capacity: | 128 GB |
| Memory Slot Total Quantity: | 4 |
| Provides Error Checking Method: | non-ECC |
| Memory Features: | XMP |
| Controller | |
| Integrated: | Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (8) Storage Controller: PCIe 3.0 x4/SATA (1 x M.2 (Key M)) Storage Controller: PCI Express 4.0 x4 (2 x M.2 (Key M)) |
| Support: | Wi-Fi Controller: 1 x M.2 (Key E) |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | yes |
| Device Location: | Integrated |
| Audio Chipset: | Realtek ALC1220 |
| Audio Output Mode: | 7.1 Channel Surround |
| Compliant Audio Standards: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | yes |
| LAN Chipset: | Realtek RTL8125B |
| Data Link Protocol Supports: | Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps |
| Slot Provided | |
| PCI Express 4.0 x16: | 1 |
| PCI Express 5.0 x16: | 1 |
| PCI Express 3.0 x1: | 2 |
| Interface Provided | |
| PS/2: | 1 |
| HDMI: | 1 (HDMI (Type A)) |
| DisplayPort: | 1 |
| DVI: | 1 (DVI-D) |
| USB 3.2 Gen 2: | 1 (USB 3.2 (type C)); 5 (USB 3.2 (type A)) |
| USB 2.0: | 2 (USB 2.0 (type A)) |
| LAN: | 1 (RJ-45) |
| Audio Interface: | 3 (3.5-mm minijack) |
| Main Board Desktop - Mainboard Features | |
| Power Connectors Type: | 24+8+4 pin |
| Mainboard Features: | Intel Optane Memory Ready |
| Main Board Desktop - Software | |
| Software Included: | Intel Rapid Storage Technology |
| Supported Operating System: | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Miscellaneous | |
| Cable Included: | 4 x SATA Data Cables |
| Included Accessories: | User Guide Driver CD |
| Main Board Desktop - Dimensions&Weight | |
| Form Factor: | ATX |
| Height (mm): | 244 mm |
| Width (mm): | 305 mm |
