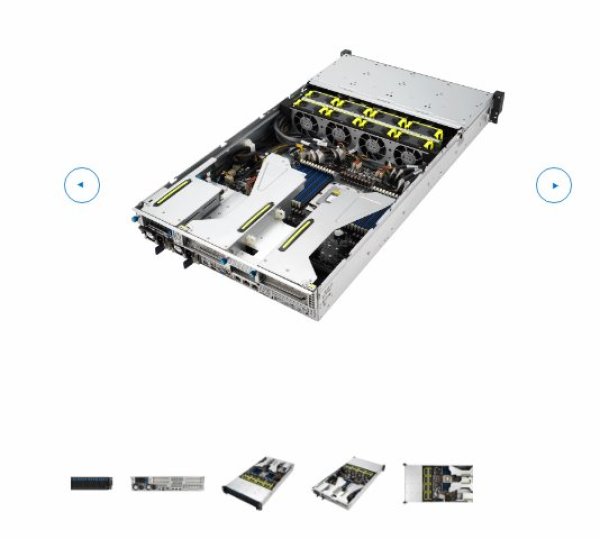

ASUS 2U RS521A-E12-RS24U 1 xSP5 (LGA 6096) 24xDDR5/24NVMe/RH/OCP/GPU 1GB LAN 2KW
Výrobce
Asus
91 841 Kč
75 901 Kč bez DPH
Skladem
Parametry
Kód produktu
010ASRS521AE12RS24U
EAN
4711387866177
Popis
-
Processor / System Bus
1 x Socket SP5 (LGA 6096)
5th Generation AMD EPYC Processors or 4th Generation AMD EPYCProcessors
AMD EPYC™ 9005/9004 Series Processors (Air cool with STD HS up to 360W) -
Memory
24 x DIMM slots
DDR5 5600 RDIMM/ 3DS RDIMM
Maximum 2,304GB
with AMD EPYC™ 9005 series processors
2DPC (1 of 2) up to 5200
2DPC (2 of 2, 1R+1R ) up to 4400,
2DPC (2 of 2, 2R+2R ) up to 4000
with AMD EPYC™ 9004 series processors
2DPC (1 of 2) up to 4800,
2DPC (2 of 2, 1R+1R ) up to 4000
2DPC (2 of 2, 2R+2R ) up to 3600
* Refer to support page for more information -
Expansion Slots
16 NVMe configuration SKU:
Up to 5 PCIe Gen5 slots + 1 OCP3.0
2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
1 x PCIe Gen5 x8, LP
1 x OCP 3.0 Slot ( (PCIe Gen5 x16)
24 NVMe configuration SKU:
Up to 1 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe Gen5 x8, LP
1 x OCP 3.0 Slot ( (PCIe Gen5 x16) -
Storage
Storage Controller :
CPU Integrated
Optional kits Controller :
Broadcom Mega RAID 9560-16i
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card -
Drive Bays
Front bays:
16 NVMe configuration SKU:
24 x 2.5” hot-swap drive bays
Support 16x NVMe + 8 SAS/SATA
*RAID/PIKE cable is needed for 8 SAS/SATA
24 NVMe configuration SKU:
24 x 2.5” hot-swap drive bays
Support 24x NVMe
Rear bays:2 x 2.5” SATA hot-swap drive bays
2 x M.2 connectors -
Networking
1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port -
Graphic
Up to 4 single-slot or 2 double-slot GPU cards
*24 NVMe can‘t support GPU -
Multi-GPU Support
Please find the latest GPU support from https://servers.asus.com/support/GPU -
Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port -
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports -
Switch/LED
Front:
1 x Power Button/LED
1 x Reset Switch
1 x Location Button/LED
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED
Rear:
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED -
OS Support
Please find the latest OS support from https://servers.asus.com/support/os -
Management Solution
ASUS Control Center
ASUS ASMB11-iKVM (on-board) -
Regulatory Compliance
CB, CE, RCM, FCC(Class A) -
Dimensions
840mm x 449mm x 88.1mm (2U)
33.07” x 17.68” x 3.47 -
Form Factor
2U -
Weight
(approximate)
Net Weight: 19.14 kg
Gross Weight: 26.63 kg -
Power Supply
1+1 Redundant 2000W/1600W 80 PLUS Titanium
Power Supply -
Environment
Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)
Note
Operating Temperature based on configurations -
Optional Items
Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
