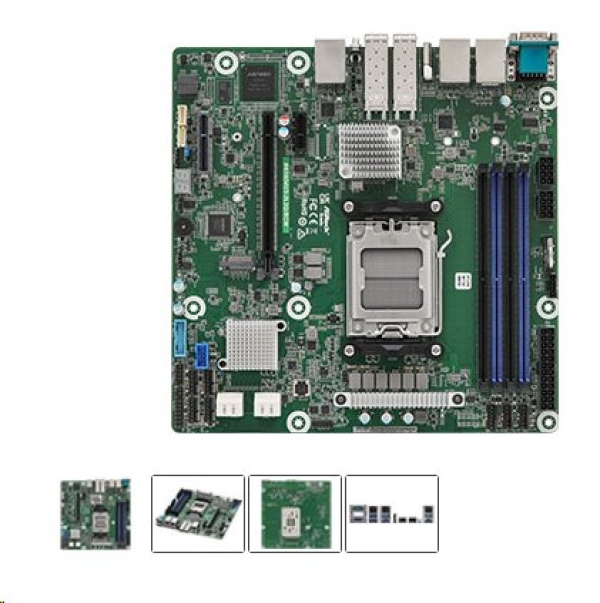

ASRock Rack B650D4U3 AM5, 4xDDR5 non-ECC, 4x SATA, 1x M.2(2280), 2x PCIe, 2x LAN, IPMI
Výrobce
ASRock
13 215 Kč
10 921 Kč bez DPH
Skladem
Parametry
Kód produktu
010AGB650D4U32L2QBMC
EAN
4711430522968
Popis
Specifications
| Physical Status | |
| Form Factor | Micro-ATX |
| Dimensions | 9.6" x 9.6" (244 mm x 244 mm) |
| Processor System | |
| CPU | Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors |
| Socket | 1 Socket AM5 (LGA 1718) |
| Thermal Design Power | Up to 170W by proper cooling solution |
| Chipset | AMD B650E |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM | 48GB |
| Max. DIMM Frequency | 5600 MHz (1DPC); 3600 MHz (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: PCIe5.0 x16 [CPU] |
| PCIe x 4 | SLOT4: PCIe4.0 x4 [FCH] |
| PCIe x 1 | SLOT7: PCIe4.0 x1 [FCH] |
| Other PCIe Expansion Connectors | |
| M.2 slot | M2_1 (PCIe5.0 x4), supports 2280/2242 form factor [CPU] |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD B650E (4 SATA 6Gb/s): 4 SATA 7-pin |
| Ethernet | |
| Additional Ethernet Controller | Broadcom BCM57502: 2 SFP28 (25GbE) Intel® i210: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| Dedicated IPMI LAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA) AMD Processors with Graphics: 1 HDMI |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| Video Port | 1 DB15 (VGA), 1 HDMI |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 4 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) 1 dedicated IPMI |
| Other network connector | 2 SFP28 (25GbE) |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN activity LED |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| VGA header | 1 |
| Speaker Header | 1 |
| Buzzer | 1 |
| Fan Header | 7 (6pin) co-lay 7 (4-pin) |
| TPM Header | 1 (13-pin, SPI) |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 |
| Others | 1 (3-pin, 80 debug port header) |
| Front Lan LED Connector | 1 |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| USB 2.0 Header | 1 (9-pin, 2 USB2.0) |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| BMC Heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 |
| Hardware Monitor | |
| Temperature | CPU, DDR, MB, Card Side, Chipset, 25G LAN, M.2 slot |
| Fan | Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| Voltage | VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_VDDC_HOST, VOLT_VDDC_AON, VOLT_5V, VOLT_12V, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
| Environment | |
| Temperature | Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C |
| Humidity | Non-operating humidity: 20% ~ 90% (non-condensing) |
