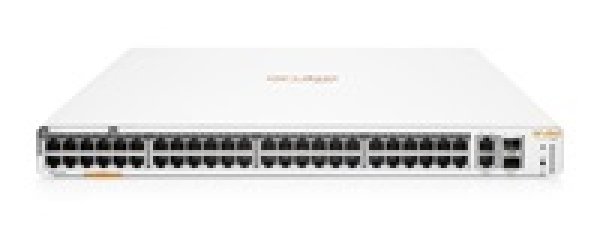

Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch
Parametry
Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch
|
I/O ports and slots |
12 RJ-45 autosensing 100/1000/10GBASE-T ports (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE-T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only 4 SFP+ 10GbE ports |
|
Dimensions |
350.5(d) x 442.5(w) x 43.95(h) mm |
|
Weight |
9.6 lb (4.3 kg) |
|
CPU |
Single Core ARMv7 Cortex-A9 @2Ghz |
|
100 Mb Latency |
< 7.4 uSec |
|
1000 Mb Latency |
< 4.2 uSec |
|
10000 Mb Latency |
< 1.1 uSec |
|
Throughput (Mpps) |
238 Mpps |
|
Capacity |
320 Gbps |
|
Routing Table size (# of static entries) |
512 IPv4/IPv6 |
|
MAC Address table size (# of entries) |
16,000 entries |
|
Reliability MTBF (years) |
88.8 |
|
Operating temperature |
0-40°C, 0-10,000 ft |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C) non-condensing |
|
Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) up to 15000 ft |
|
Nonoperating/Storage relative humidity |
15% to 90% @ 149°F (65°C) non-condensing |
|
Altitude |
up to 10,000 ft (3 km) |
|
Acoustics1 |
LWAd = 4.0 Bel |
|
Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) |
|
|
Electrical Characteristics |
|
|
Frequency |
50Hz/60Hz |
|
AC voltage |
100-127VAC / 200-240VAC |
|
Current |
1.3A/0.4A |
|
Maximum power rating |
100-127V: 130W 200-220V: 160W |
|
Idle power |
100-127V: 60W 200-220V: 80W |
|
PoE power |
- |
|
Power Supply |
Internal power supply |
|
Safety |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
|
Emissions |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
|
Generic |
EN 55035, CISPR 35, KN35 |
|
EN |
EN 55035, CISPR 35 |
|
ESD |
EN/IEC 61000-4-2 |
|
Radiated |
EN/IEC 61000-4-3 |
|
EFT/Burst |
EN/IEC 61000-4-4 |
|
Surge |
EN/IEC 61000-4-5 |
|
Conducted |
EN/IEC 61000-4-6 |
|
Power frequency magnetic field |
EN/IEC 61000-4-8 |
|
Voltage dips and interruptions |
EN/IEC 61000-4-11 |
|
Harmonics |
EN/IEC 61000-3-2 |
|
Flicker |
EN /IEC 61000-3-3 |
|
Device Management |
Aruba Instant On Cloud; Web browser; SNMP Manager |
|
Mounting Positions and Supported Racking |
|
|
Transceivers |
|
