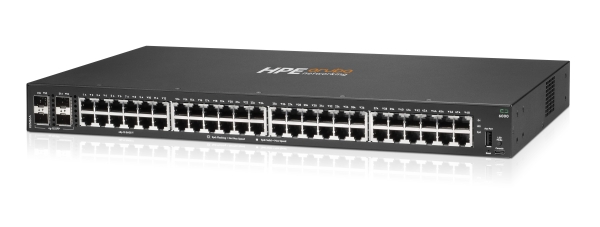

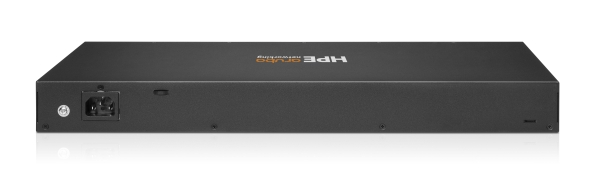

Aruba 6000 48G 4SFP Switch R8N86AR RENEW
Parametry
Výprodej Aruba 6000 48G 4SFP Switch
|

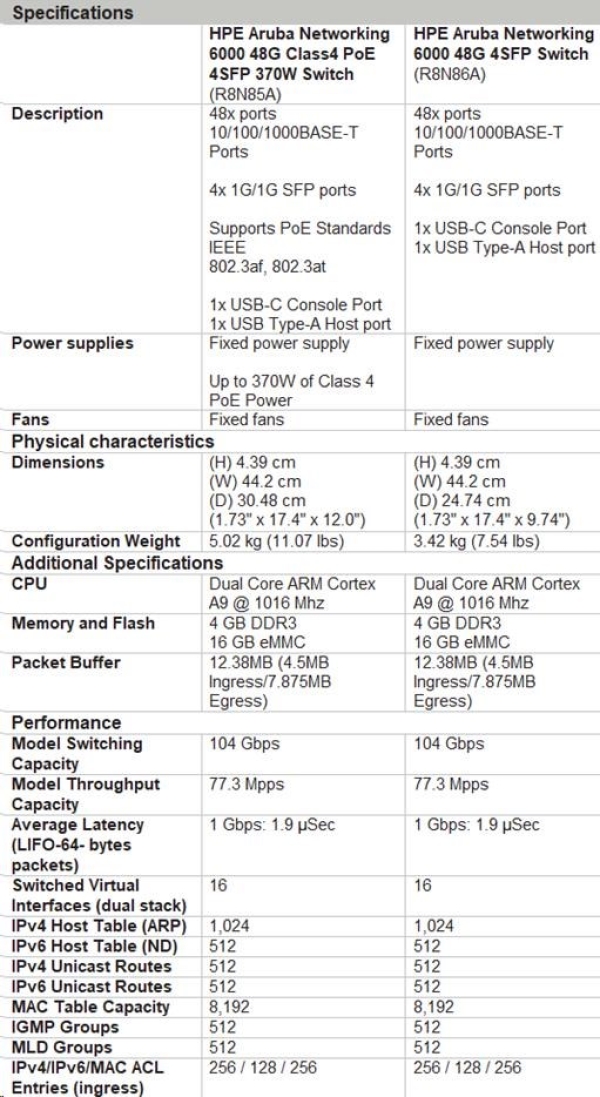

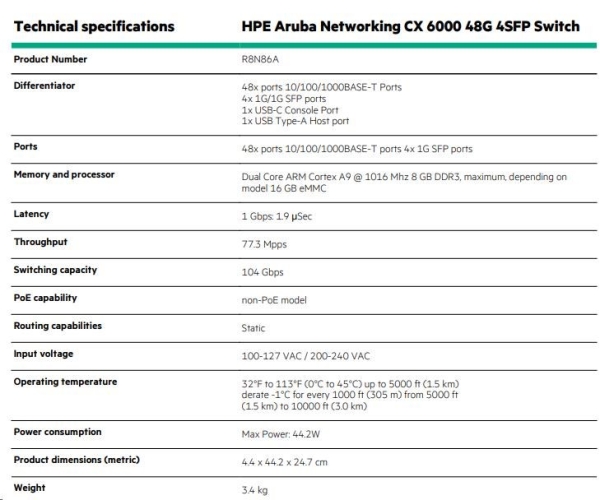

Aruba 6000 48G 4SFP Switch (R8N86A) |
|
|
Description |
48x ports 10/100/1000BASE-T Ports
4x 1G/1G SFP ports 1x USB-C Console Port 1x USB Type-A Host port |
|
Power supplies |
Fixed power supply |
|
Fans |
Fixed fans |
|
Dimensions |
(H) 4.39 cm (W) 44.2 cm (D) 24.74 cm (1.73" x 17.4" x 9.74") |
|
Configuration Weight |
3.42 kg (7.54 lbs) |
|
CPU |
Dual Core ARM Cortex A9 @ 1016 Mhz |
|
Memory and Flash |
4 GB DDR3 16 GB eMMC |
|
Packet Buffer |
12.38MB (4.5MB Ingress/7.875MB Egress) |
|
Model Switching Capacity |
104 Gbps |
|
Model Throughput Capacity |
77.3 Mpps |
|
Average Latency (LIFO-64- bytes packets) |
1 Gbps: 1.9 µSec |
|
Switched Virtual Interfaces (dual stack) |
16 |
|
IPv4 Host Table (ARP) |
1,024 |
|
IPv6 Host Table (ND) |
512 |
|
IPv4 Unicast Routes |
512 |
|
IPv6 Unicast Routes |
512 |
|
MAC Table Capacity |
8,192 |
|
IGMP Groups |
512 |
|
MLD Groups |
512 |
|
IPv4/IPv6/MAC ACL Entries (ingress) |
256 / 128 / 256 |
|

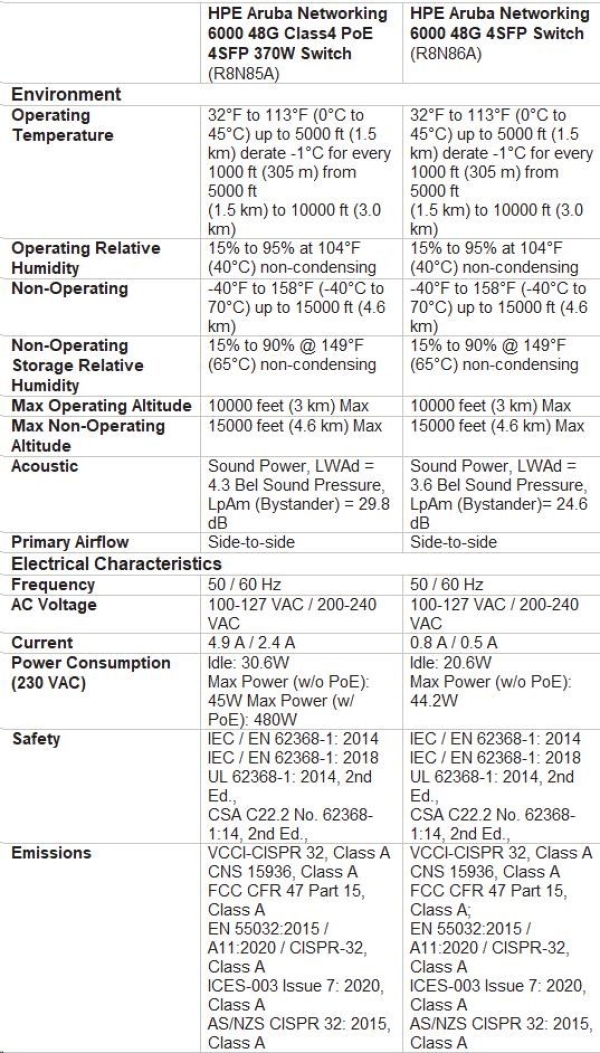

Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
|
Operating Relative Humidity |
15% to 95% at 104°F (40°C) non-condensing |
|
Non-Operating |
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
|
Non-Operating Storage Relative Humidity |
15% to 90% @ 149°F (65°C) non-condensing |
|
Max Operating Altitude |
10000 feet (3 km) Max |
|
Max Non-Operating Altitude |
15000 feet (4.6 km) Max |
|
Acoustic |
Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander)= 24.6 dB |
|
Primary Airflow |
Side-to-side |
|
Electrical Characteristics |
|
|
Frequency |
50 / 60 Hz |
|
AC Voltage |
100-127 VAC / 200-240 VAC |
|
Current |
0.8 A / 0.5 A |
|
Power Consumption (230 VAC) |
Idle: 20.6W Max Power (w/o PoE): 44.2W |
|

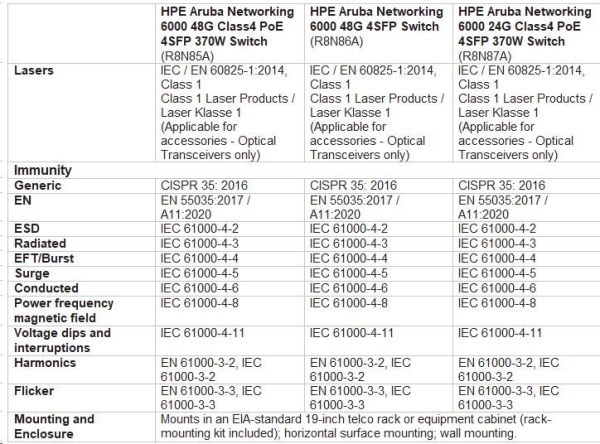

Safety |
UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 |
|
Emissions |
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
