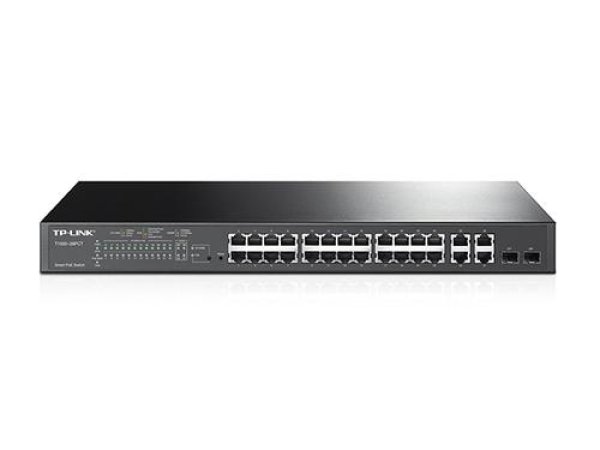

Inteligentní switch Smart PoE+ s 24 porty 10/100 Mbit/s a 4 gigabitovými porty T1500-28PCT (TL-SL2428P) Nabízí 24 portů podporující PoE+ v souladu se standardem 802.3at/af s celkovým napájením o výkonu 180 W Integrovaná strategie zabezpečení včetně 802.1Q VLAN, zabezpečení portů a funkce Storm control pomáhá zabezpečit oblast LAN Funkce L2/L3/L4 QoS a IGMP Snooping optimalizují hlasové a video aplikace Řízené režimy WEB/CLI, SNMP a RMON poskytují bohaté možnosti správy HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p Interface 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Combo Gigabit SFP Slots Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF Fan Quantity 2 Power Supply 100~240VAC, 50/60Hz Power Consumption Maximum(PoE on): 222.15W (220V/50Hz) PoE+ Ports(RJ45) Standard: 802.3at/af compliant PoE+ Ports: 24 Ports Power Supply: 180W Dimensions ( W x D x H ) 17.3*8.7*1.7 in.(440*220*44 mm) PERFORMANCE Bandwidth/Backplane 12.8Gbps Packet Forwarding Rate 9.5Mpps MAC Address Table 8k Jumbo Frame 9216 Bytes SOFTWARE FEATURES Quality of Service Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow-based Rate Limiting Voice VLAN L2 Features IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP LLDP, LLDP-MED BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) Access Control List L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports Security SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control Management Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS OTHERS Certification CE, FCC, RoHS Package Contents T1500-28PCT Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet System Requirements Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. Environment Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
