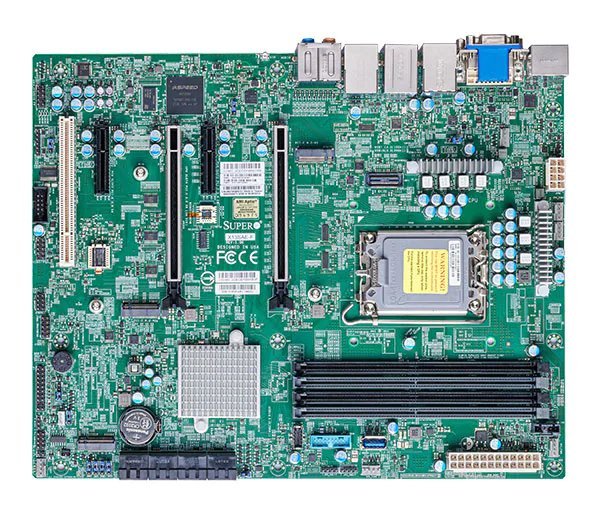

SUPERMICRO MB LGA1700 (core 12.g), W680,4xDDR5,8xSATA3,2xM.2,2x PCIe5.0 x16, 2x PCIe3.0 x4, PCI,HDMI,DP,DVI,Audio,2x LAN?v=1761864003

Product SKUs

MBD-X13SAE

Physical Stats
Form Factor	ATX
Dimension	12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU	12th/13th Gen Intel® Core™ i3/i5/i7/i9 Processors Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 150W TDP
Core	Up to 24 (8+16) cores

System Memory
Memory Capacity	4 DIMM slots Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz
Memory Type	4400/4000/3600 MT/s 192GB
DIMM Sizes	8GB, 16GB, 24GB, 32GB, 48GB UDIMM: 8GB, 16GB, 24GB, 32GB, 48GB
Memory Voltage	1.1V

On-Board Devices
Chipset	Intel® W680
SATA	Intel® W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Audio	ALC 888S HD Audio
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet i225V

Input / Output
LAN	1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 2.5 Gigabit Ethernet LAN port
USB	4 USB 2.0 port(s) (2 rear; 2 via header) 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header) 3 USB 3.2 Gen2x1 port(s) (3 rear type A) 3 USB 3.2 Gen1x1 port(s) (2 via header; 1 Vertical Type A)
Video Output	1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
Serial Port	1 COM Port(s) (1 header)
TPM	1 TPM Header

Expansion Slots
PCIe	2 PCIe 5.0 x16 slots (16/NA or 8/8), 2 PCIe 3.0 x4
M.2	M.2 Interface: 3 PCIe 4.0 x4, RAID 0, 1, 5 Form Factor: 2280 Key: M-Key
Note	1 5V PCI 32bit

System BIOS
BIOS Type	256MB SPI Flash with AMI BIOS
BIOS Features	ACPI 6.0 Plug and Play (PnP) BIOS rescue hot keys Riser card auto-detection support SMBIOS 3.0 or later

Management
System Management Software	SuperDoctor 5
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
Voltage	VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED	Power LED Catastrophic Error LED
FAN	5x 4-pin fan headers (up to 5 fans) Fan speed control Overheat LED indication
Other Features	CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector

Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)

Technické parametry

SUPERMICRO MB LGA1700 (core 12.g), W680,4xDDR5,8xSATA3,2xM.2,2x PCIe5.0 x16, 2x PCIe3.0 x4, PCI,HDMI,DP,DVI,Audio,2x LAN

Name: SUPERMICRO MB LGA1700 (core 12.g), W680,4xDDR5,8xSATA3,2xM.2,2x PCIe5.0 x16, 2x PCIe3.0 x4, PCI,HDMI,DP,DVI,Audio,2x LAN
Brand: Supermicro
Price: 10993 CZK
Availability: InStock

Výrobce Supermicro

10 993 Kč 9 085 Kč bez DPH

Skladem
