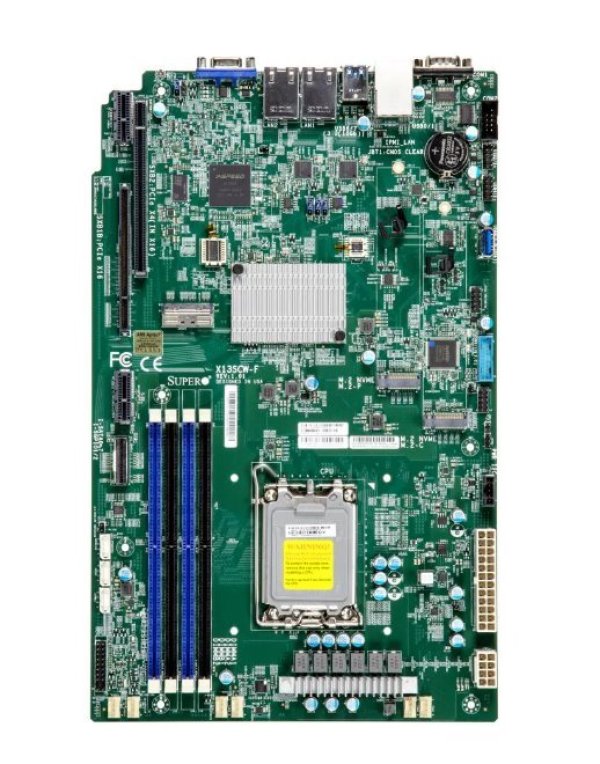

SUPERMICRO MB LGA1700 4xDDR5 8xSATA 2xM.2 .PCIe1x5,16x 1x5x4 2xLAN IPMI WIO?v=1761864003

Product SKUs

MBD-X13SCW-F

Physical Stats
Form Factor	Proprietary WIO
Dimension	8" x 13" (20.32cm x 33.02cm)

Processor
CPU	Intel® Xeon ® 6300-series/ E-2400/Pentium®* Processor Single Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP *Pentium® G7400 and G7400T BIOS 2.0 or above is required to support Intel® Xeon® 6300-series processor
Core	Up to 8 cores

System Memory
Memory Capacity	4 DIMM slots Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
Memory Type	4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (1DPC) or 4000 MT/s (2DPC)
DIMM Sizes	8GB, 16GB, 32GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C266
SATA	Intel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 Aspeed AST2600 BMC port(s)
Network Controllers	Dual LAN with 1GbE with Intel® I210

Input / Output
SATA	8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	4 USB 2.0 port(s) (2 via header; 2 rear) 2 USB 3.2 Gen1 port(s) (2 via header) 3 USB 3.2 Gen2 port(s) (2 rear; 1 type A)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
TPM	1 TPM Header

Expansion Slots
PCIe	1 PCIe 5.0 x16 Left Riser Slot, 1 PCIe 4.0 x4 Right Riser (in x16) slot
M.2	M.2 Interface: 2 PCIe 4.0 x4 Form Factor: 2280/22110 Key: M-Key

System BIOS
BIOS Type	AMI 32MB AMI UEFI
BIOS Features	ACPI 6.4 SMBIOS 3.5 UEFI 2.8 Plug and Play (PnP) PCI FW 3.3

Management
Software	SuperCloud Composer®, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities
Power Configurations	ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages, +3.3V standby
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support PECI
FAN	6x 4-pin fan headers (up to 6 fans) Fan speed control 6 fans with tachometer status monitoring Overheat LED indication
Other Features	WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

Operating Environment
Operating Temperature Range	-5°C - 55°C (23°F - 131°F)
Non-Operating Temperature Range	-30°C - 60°C (-22°F - 140°F)
Operating Relative Humidity Range	8% - 80% (non-condensing)
Non Operating Relative Humidity Range	8% - 90% (non-condensing)

Technické parametry

SUPERMICRO MB LGA1700 4xDDR5 8xSATA 2xM.2 .PCIe1x5,16x 1x5x4 2xLAN IPMI WIO

Name: SUPERMICRO MB LGA1700 4xDDR5 8xSATA 2xM.2 .PCIe1x5,16x 1x5x4 2xLAN IPMI WIO
Brand: Supermicro
Price: 11053 CZK
Availability: OutOfStock

Výrobce Supermicro

11 053 Kč 9 134 Kč bez DPH

Není skladem

Parametry

Kód produktu

010SRMBDX13SCWFO

EAN

672042918416

Popis

Product SKUs

MBD-X13SCW-F

Physical Stats
Form Factor	Proprietary WIO
Dimension	8" x 13" (20.32cm x 33.02cm)

Processor
CPU	Intel® Xeon ® 6300-series/ E-2400/Pentium®* Processor Single Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP *Pentium® G7400 and G7400T BIOS 2.0 or above is required to support Intel® Xeon® 6300-series processor
Core	Up to 8 cores

System Memory
Memory Capacity	4 DIMM slots Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
Memory Type	4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (1DPC) or 4000 MT/s (2DPC)
DIMM Sizes	8GB, 16GB, 32GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C266
SATA	Intel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 Aspeed AST2600 BMC port(s)
Network Controllers	Dual LAN with 1GbE with Intel® I210

Input / Output
SATA	8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	4 USB 2.0 port(s) (2 via header; 2 rear) 2 USB 3.2 Gen1 port(s) (2 via header) 3 USB 3.2 Gen2 port(s) (2 rear; 1 type A)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
TPM	1 TPM Header

Expansion Slots
PCIe	1 PCIe 5.0 x16 Left Riser Slot, 1 PCIe 4.0 x4 Right Riser (in x16) slot
M.2	M.2 Interface: 2 PCIe 4.0 x4 Form Factor: 2280/22110 Key: M-Key

System BIOS
BIOS Type	AMI 32MB AMI UEFI
BIOS Features	ACPI 6.4 SMBIOS 3.5 UEFI 2.8 Plug and Play (PnP) PCI FW 3.3

Management
Software	SuperCloud Composer®, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities
Power Configurations	ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages, +3.3V standby
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support PECI
FAN	6x 4-pin fan headers (up to 6 fans) Fan speed control 6 fans with tachometer status monitoring Overheat LED indication
Other Features	WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

Operating Environment
Operating Temperature Range	-5°C - 55°C (23°F - 131°F)
Non-Operating Temperature Range	-30°C - 60°C (-22°F - 140°F)
Operating Relative Humidity Range	8% - 80% (non-condensing)
Non Operating Relative Humidity Range	8% - 90% (non-condensing)

Parametry

Kód produktu

010SRMBDX13SCWFO

EAN

672042918416
