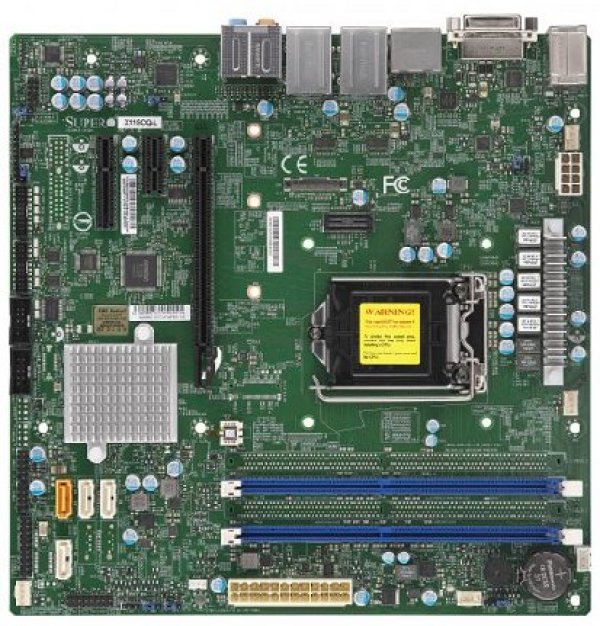

Product SKUs MBD-X11SCQ X11SCQ Physical Stats Form Factor uATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU 8th/9th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP System Memory Memory Capacity Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2V On-Board Devices Chipset Intel® Q370 SATA Intel® Q370 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller Audio 7.1 HD Audio Graphics Intel® HD Graphics 3 Independent Displays Input / Output LAN 2 RJ45 Gigabit Ethernet LAN ports USB 6 USB 2.0 ports (2 rear + 4 via headers) 6 USB 3.1 ports (4 rears (2 Type A + 2 Type C) + 2 via headers Video Output 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port, 3 Independent Displays Serial Port / Header 6 COM Ports (6 headers) TPM TPM Header & Chip both Expansion Slots PCI-E 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x1, 2 PCI-E 3.0 x4 M.2 M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2242/2280/22110 Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.1 PCI FW 3.0 UEFI 2.6 RTC (Real Time Clock) Wakeup Management Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog Power Configurations ATX Power connector ACPI Power Management PC Health Monitoring Voltage +12V, +3.3V, +5V, 1.2V (VDIMM), 4 fans with tachometer monitoring, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, System temperature, VBAT FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring Temperature CPU thermal trip support, Monitoring for CPU and chassis environment LED Power LED Other Features ACPI power management, ATX Power connector, Chassis intrusion header, M.2 NGFF connector, RoHS Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
