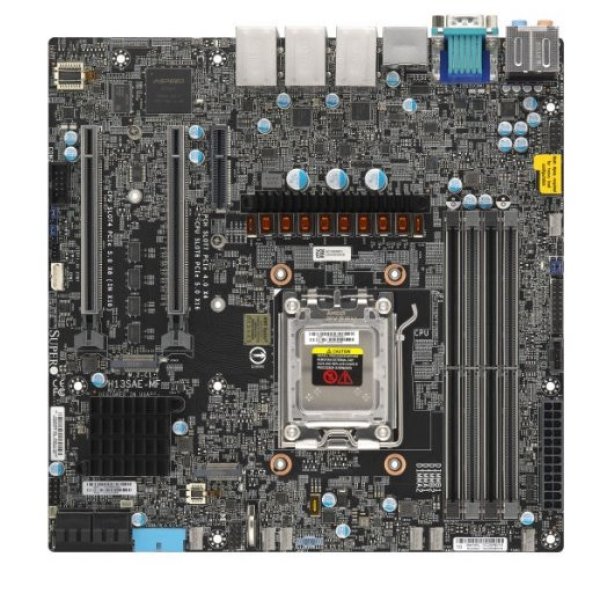

SUPERMICRO MB 1xAM5 (LGA-1718), 4x DDR5, 4x SATA, 2x M.2, PCIe 5.0 (2 x16, 1 x4), 2x1Gb,IPMI
Výrobce
Supermicro
12 288 Kč
10 155 Kč bez DPH
Skladem
Parametry
Kód produktu
010SRMBDH13SAEMFB
EAN
672042893768
Popis
|
Product SKUs
|
|
| MBD-H13SAE-MF | |
| Physical Stats | |
| Form Factor | Micro-ATX |
| Dimension | 9.6" x 9.6" (24.384cm x 24.384cm) |
| Processor | |
| CPU | AMD Ryzen™ 7000 series Processors |
| Single Socket LGA-1718 (Socket AM5) supported, CPU TDP supports Up to 170W TDP | |
| Core | Up to 16 cores, 32 threads |
| System Memory | |
| Memory Capacity | 4 DIMM slots |
| Memory Type | 5200/4800/3600 MT/s Up to 192GB of memory with speeds of up to 5200MT/s (1DPC)/ 3600MT/s (2DPC) |
| DIMM Sizes | 8GB, 16GB, 24GB, 32GB, 48GB |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | B650 |
| SATA | 4 SATA3 ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2600 BMC |
| Audio | ALC 888S HD Audio |
| Network Controllers | Dual LAN with Intel® i210 Gigabit Ethernet Controller |
| Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMI | |
| Input / Output | |
| USB | 1 USB 3.2 Gen2x2 port(s) (1 rear type C 20Gb) |
| 5 USB 3.2 Gen2 port(s) (3 rear type A 10Gb; 2 rear type C DP 1.4 Alt mode) | |
| 2 USB 3.2 Gen1 port(s) (2 headers 5Gb) | |
| 1 USB 2 port(s) (1 via header 2 ports by a header) | |
| Video Output | 1 HDMI 2.0 port(s), 1 DP 1.4a port(s), 2 rear type C port(s) DP 1.4 Alt mode |
| Serial Port | 1 COM Port(s) (1 header) |
| TPM | 1 TPM Header AOM-TPM-9670V |
|
|
|
| Expansion Slots Riser Card For 1U RSC-S-6G5 | |
| PCIe | 1 PCIe 4.0 x4, |
| 2 PCIe 5.0 x16 slots (16/NA or 8/8) | |
| M.2 | M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1 |
| Form Factor: 2280/22110 | |
| Key: M-Key | |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | ACPI 6.4 |
| SMBIOS 3.5 or later | |
| UEFI 2.8 | |
| Plug and Play (PnP) | |
| USB Keyboard support | |
| Management | |
| Power Configurations | Power-on mode control for AC power loss recovery, Power button override mechanism, S3/S4/S5 |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| Voltage | System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| FAN | 7x 4-pin fan headers (up to 7 fans) |
| Operating Environment | |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
| ?? | |
