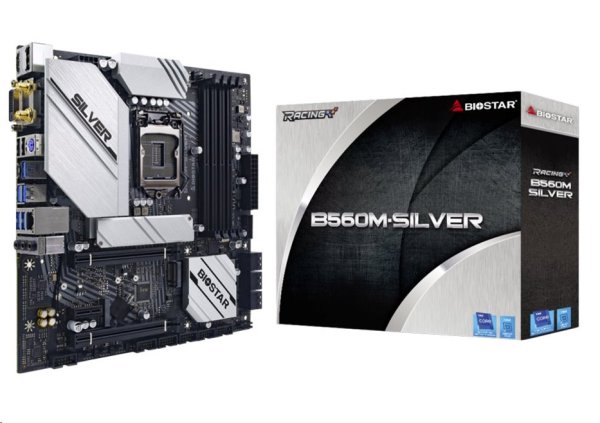

BIOSTAR B560M-SILVER, LGA 1200, Intel B560, 4xDDR4, HDMI/DVI-D/DP, 2xPCI-E x16, 1xPCI-E x1, 6xSATA, 2
Výrobce
Biostar
3 206 Kč
2 649 Kč bez DPH
Skladem
Parametry
Kód produktu
010ZSB560MSILVER
EAN
4712960685109
Popis
| Main Board Desktop - Processor | |
| Chipset: | Intel B560 |
| Supports Central Processor Unit: | Intel 10th Gen Processors Intel 11th Gen Processors |
| CPU Socket Standard: | Socket 1200 |
| CPU Maximum Quantity Supports: | 1 |
| Main Board Desktop - Memory | |
| Memory Type: | DDR4 SDRAM |
| Memory Form Factor: | DIMM 288-pin |
| Memory Speed: | 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2667MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3200MHz(PC4-25600) |
| Maximum Installable System Memory Storage Capacity: | 128 GB |
| Memory Slot Total Quantity: | 4 |
| Provides Error Checking Method: | non-ECC |
| Memory Features: | XMP |
| Controller | |
| Integrated: | Storage Controller: SATA III-600 (6) Storage Controller: PCI Express 4.0 x4 (1 x M.2 (Key M)) Storage Controller: PCIe 3.0 x4/SATA (1 x M.2 (Key M)) |
| Support: | Wi-Fi Controller: 1 x M.2 (Key E) |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | yes |
| Device Location: | Integrated |
| Audio Chipset: | Realtek ALC1220 |
| Audio Output Mode: | 7.1 Channel Surround |
| Compliant Audio Standards: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | yes |
| LAN Chipset: | Realtek RTL8125B |
| Data Link Protocol Supports: | Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps |
| Slot Provided | |
| PCI Express 4.0 x16: | 1 |
| PCI Express 3.0 x16: | 1 |
| PCI Express 3.0 x1: | 1 |
| Interface Provided | |
| Wi-Fi Antenna: | 2 |
| PS/2: | 1 |
| HDMI: | 1 (HDMI (Type A)) |
| DVI: | 1 (DVI-D) |
| DisplayPort: | 1 |
| LAN: | 1 (RJ-45) |
| Audio Interface: | 3 (3.5-mm minijack) |
| USB 3.2 Gen 2 x2: | 1 (USB 3.2 (type C)) |
| USB 3.2 Gen 1: | 3 (USB 3.2 (type A)) |
| USB 2.0: | 2 (USB 2.0 (type A)) |
| USB 3.2 Gen 2: | 2 (USB 3.2 (type A)) |
| Main Board Desktop - Mainboard Features | |
| Hardware Monitoring: | Chassis Fan Tachometer CPU Fan Tachometer CPU Temperature System Temperature System Voltage CPU Fan multi-speed control |
| Power Connectors Type: | 24+8 pin |
| Mainboard Features: | Intel Optane Memory Ready |
| Main Board Desktop - Software | |
| Supported Operating System: | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Miscellaneous | |
| Cable Included: | 4 x SATA Data Cables |
| Included Accessories: | I/O Shield Quick Start Guide DVD |
| Main Board Desktop - Dimensions&Weight | |
| Form Factor: | Micro ATX |
| Height (mm): | 244 mm |
| Width (mm): | 244 mm |
